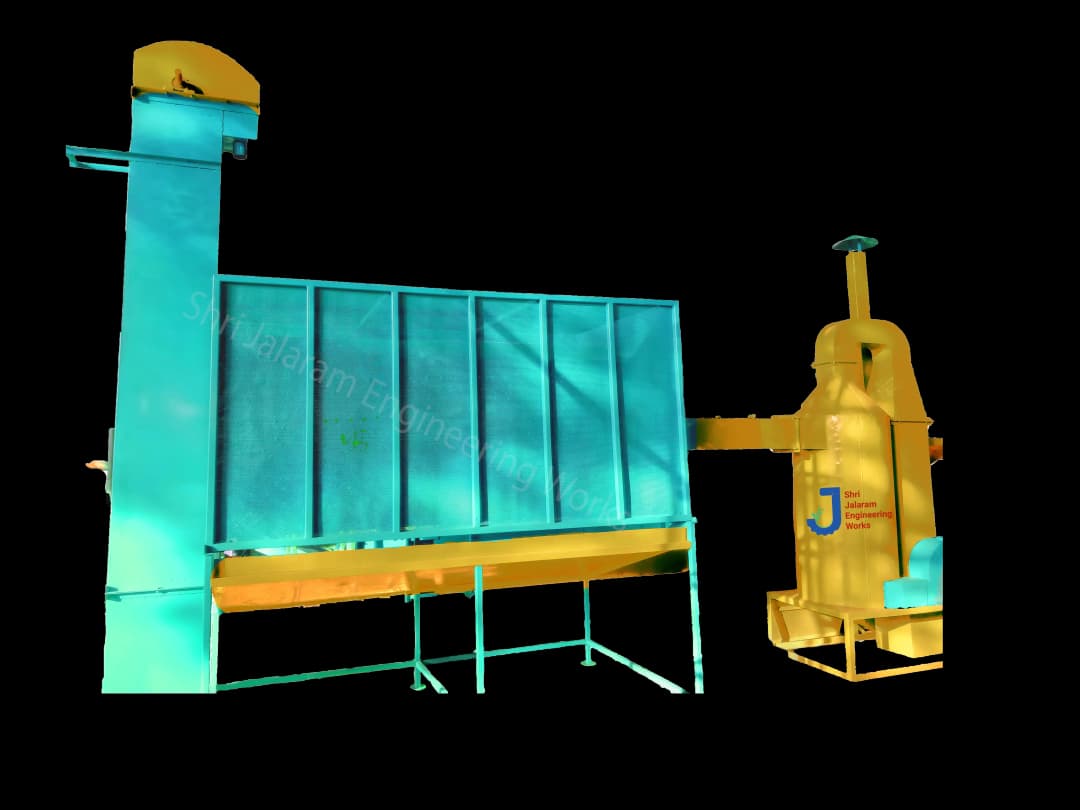

Multi-Crop Commercial Vertical Dryer
Don't Let Sudden Rainstorms Ruin Your Year's Hard Work.
Wet grain rots fast. Waiting for the sun costs you quality and time during critical harvest windows. Our Vertical Batch Dryer dries up to 750 kg per batch using clean, indirect heat, running entirely on agricultural waste, dry wood, or coconut husks. Zero diesel cost, zero added electricity expense.
Specifications
- Capacity
- 750 kg per batch
- Fuel
- Biomass - firewood, husks, crop residues
- Heat Method
- Indirect heat exchanger
- Drying Time
- 3 to 4 hours per batch
- Power
- 2 HP to 3 HP blower motor
Core Benefits
100% Clean Air - No Smoke Contamination
An indirect heat exchanger ensures only clean hot air touches your harvest. No smoke, no soot, no contamination at the buyer's gate.
Zero Fuel Cost
Runs on agri-waste, dry wood, or husks already on-site. No diesel purchase, no commercial power connection for the heat source.
Gravity-Fed Vertical Design
Grain moves through the dryer by gravity. No extra conveyor motors, lower power consumption, fewer moving parts.
Key Features
- 750 kg per batch capacity
- Runs on agricultural biomass - firewood, coconut husks, cotton stalks
- Indirect heat exchanger keeps smoke fully separated from grain
- Typically dries in 3 to 4 hours depending on starting moisture
- Qualifies for Agriculture Infrastructure Fund (AIF) and PMFME schemes
Frequently Asked Questions
Agricultural biomass - dry firewood, coconut husks, cotton stalks, and crop residues. No diesel or gas required.
Up to 750 kg per batch. Larger capacity variants available for FPOs and commercial processing units.
Typically 3 to 4 hours depending on starting moisture level and grain type.
No. An indirect heat exchanger fully separates smoke and combustion gases from the drying air. Only clean hot air contacts your grain.
A 2 HP to 3 HP motor runs the blower fan and recirculation system. Biomass provides the heat - no electricity cost for heating.
Yes. Biomass-powered post-harvest dryers qualify under Agriculture Infrastructure Fund (AIF) and PMFME schemes. Subsidy eligibility and percentages vary by state, category, and current scheme terms. We provide all required documents to support your application.
Clean ash from hot air ducts every 40 operating hours. Apply high-temperature grease to blower bearings every 100 operating hours. Both done by your own operator.
Manufactured by Shri Jalaram Engineering Works
All our machines are designed and manufactured at our facility in Akola, Maharashtra. We provide full training, installation support, and after-sales service. Every machine is tested before delivery.
