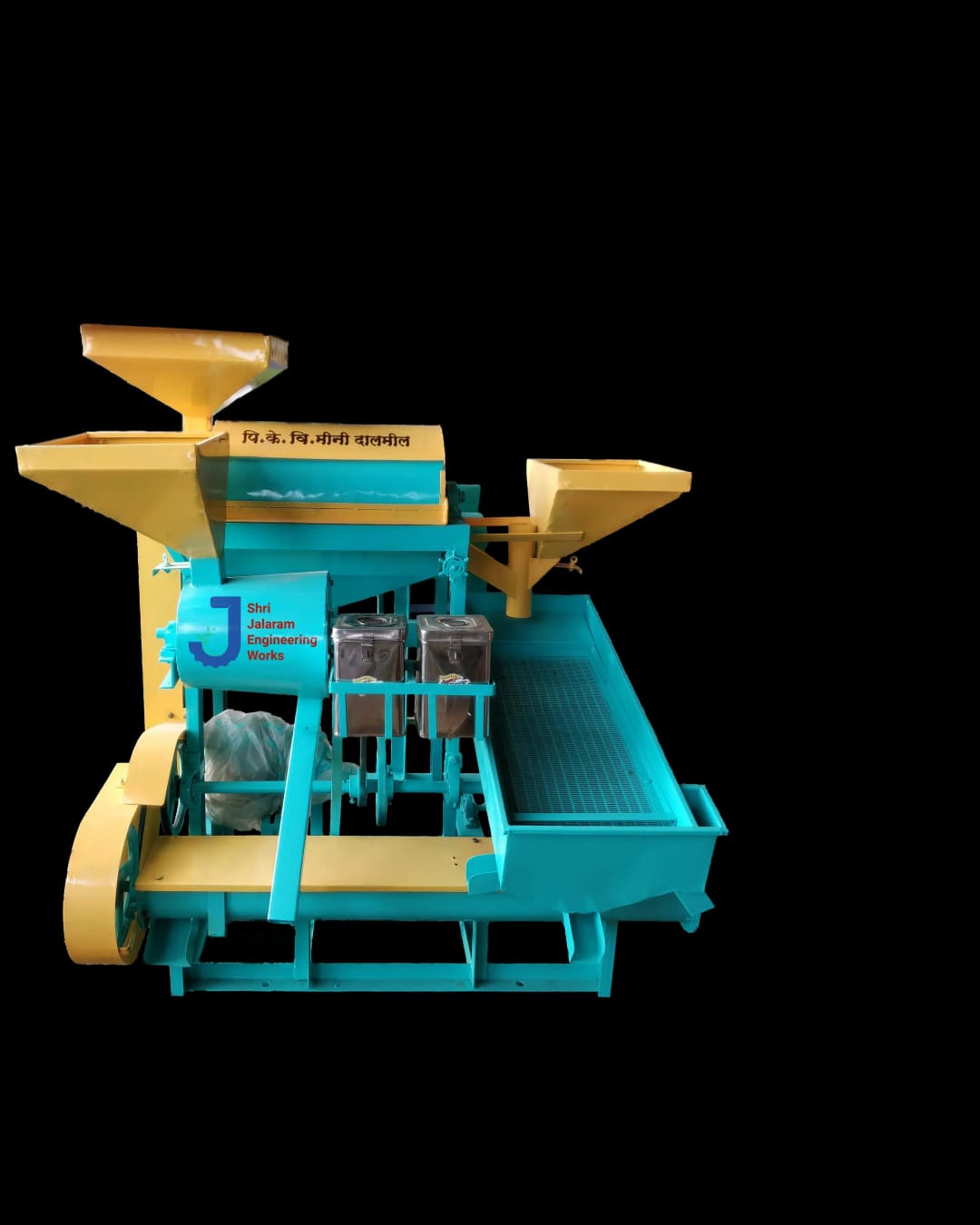

PDKV Mini Dal Mill Machine
Your Mini-Factory in a 10 x 10 Foot Room.
Process Toor, Moong, Chana, Urad, Masoor, and Barbatti (also known as Alasande or Lobia) into premium bright split dal at 100 to 150 kg per hour. Run it with just two operators. Set it up in the corner of a warehouse, a spare room, or a shed. No big factory needed.
Specifications
- Compatible Grains
- Toor, Moong, Chana, Urad, Masoor, Barbatti
- Capacity (3 HP)
- 100 to 150 kg per hour
- Capacity (5 HP)
- 350 kg per hour
- Power (3 HP)
- Single-phase 220V
- Power (5 HP)
- Three-phase
- Recovery Rate
- 70% to 80%
Core Benefits
Multi-Pass Dry Split Milling
Gently splits pulses without grinding them to powder. This process produces whole, bright premium-grade dal that commands top market prices, not the dusty broken grain that gets sold at a discount.
Integrated Cleaner and Separator
Automatically separates premium split dal, broken pieces, and husk into three distinct outlets. There is no manual sorting between output streams. It is one clean, continuous operation from raw grain to market-ready dal.
Compact 3 HP Setup on Single Phase Power
Plugs into standard rural single-phase electricity at 220V. Saves you the cost of a commercial power line. For larger setups, our 5 HP model processes 350 kg/hr and runs on three-phase power, making it ideal for FPOs and commercial units.
Pre-Shipment Trial - We Prove It Works First
Once your machine is ready in our Akola workshop, send us a sample bag of your actual crop. We run it through your exact machine, document the output and record a full HD video of the entire process. We send you that video for review before dispatch.
Key Features
- Processes Toor, Moong, Chana, Urad, Masoor, and Barbatti (Alasande / Lobia)
- 3 HP variant: 100 to 150 kg per hour on single-phase 220V
- 5 HP variant: 350 kg per hour on three-phase power
- 70% to 80% grain recovery with breakage under 5%
- PDKV-certified - eligible for 35% to 50% government subsidy
Frequently Asked Questions
The 3 HP model processes 150 kg/hr, ideal for small businesses and individual farmers. The 5 HP model processes 350 kg/hr for FPOs and commercial operations.
Toor, Moong, Chana, Urad, Masoor, and Barbatti (also known as Alasande or Lobia). Switching between pulses requires a quick roller clearance adjustment - no tools needed.
Yes. The 3 HP model runs on standard single-phase 220V rural power. The 5 HP model requires a 3-phase commercial line.
The 3 HP unit fits in a standard 10 x 10 foot room. Flat floor, single-phase power, and basic ventilation. No civil construction or special foundation required.
Our machines use Crompton motors which carry a national manufacturer warranty. For the machine itself, any major structural defect (including shaft shearing or frame failure) is covered for one full harvest season from the date of purchase.
70% to 80% grain recovery with breakage under 5% under proper operation.
Yes. PDKV certification makes this machine eligible for subsidy schemes. Subsidy eligibility and percentages vary by state, category, and current scheme terms. We provide all required documents to support your application.
Yes. The 3 HP model operates on single-phase power in a standard room. Rural entrepreneurs can launch a local processing business with low starting costs.
Emery rollers and outer wire mesh screens are the main wear items. Spare parts are stocked at our Akola workshop. Contact us directly for availability and dispatch timelines.
Manufactured by Shri Jalaram Engineering Works
All our machines are designed and manufactured at our facility in Akola, Maharashtra. We provide full training, installation support, and after-sales service. Every machine is tested before delivery.
Plot No D5, MIDC Phase 2, Shivni, Akola, Maharashtra 444104 | +91 9096707399Explore Other Products
PDKV Cleaner Grader Machine
Removes heavy stones, dust, straw, and empty pods in one single pass, protecting your mill rollers and raising your selling price from the first bag.
Multi-Crop Commercial Vertical Dryer
Dries up to 750 kg per batch on agricultural waste fuel. Zero diesel cost, zero added electricity expense for the heat source.

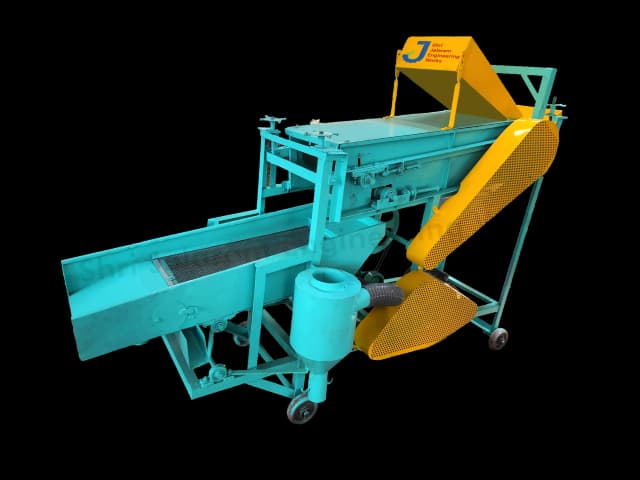

Sorghum Hurda Extraction Machine
